Descriptio

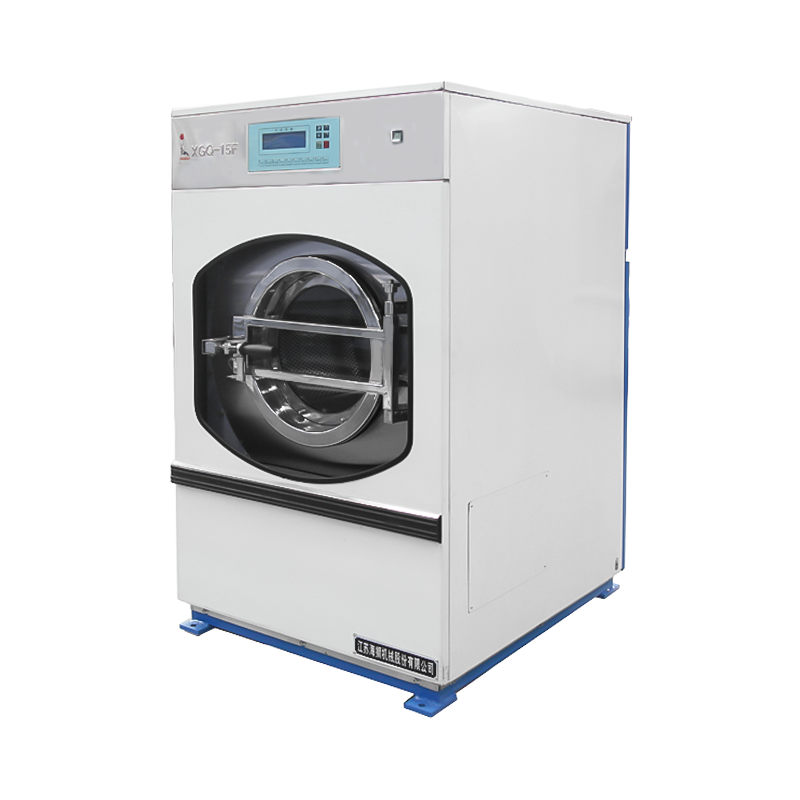

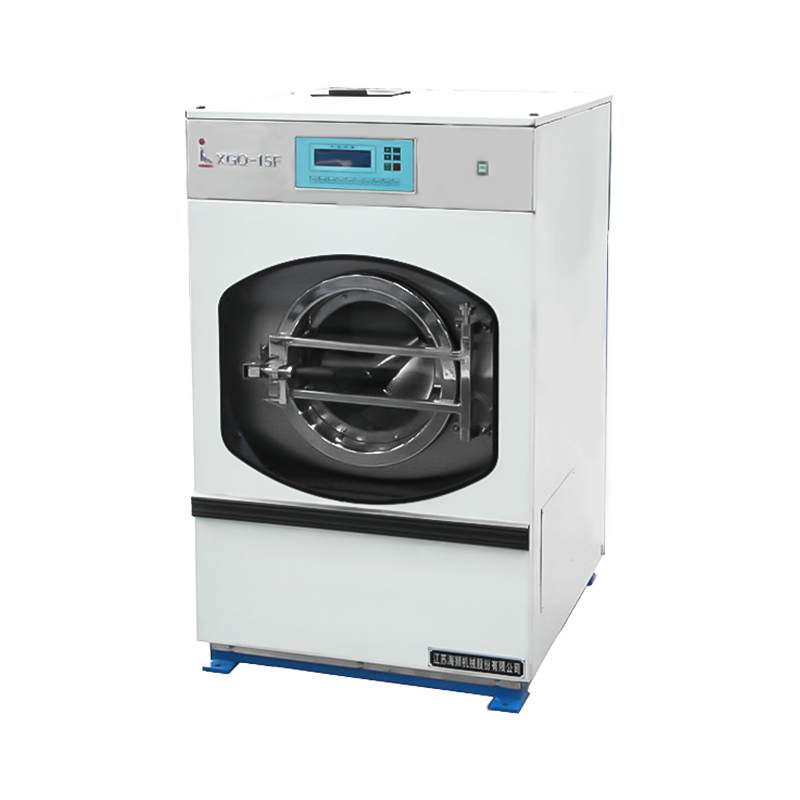

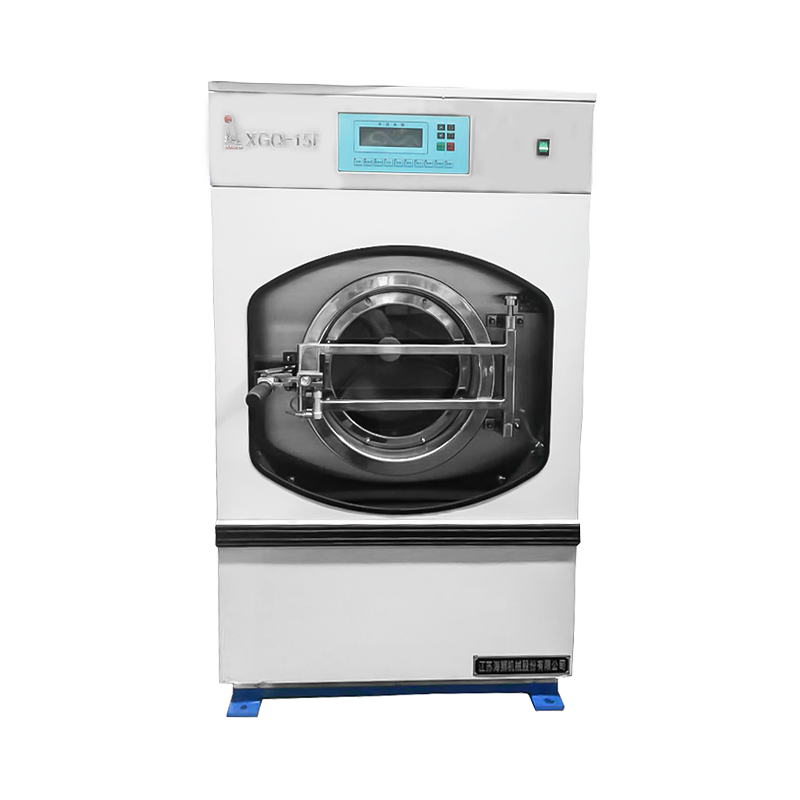

XGQ-15F

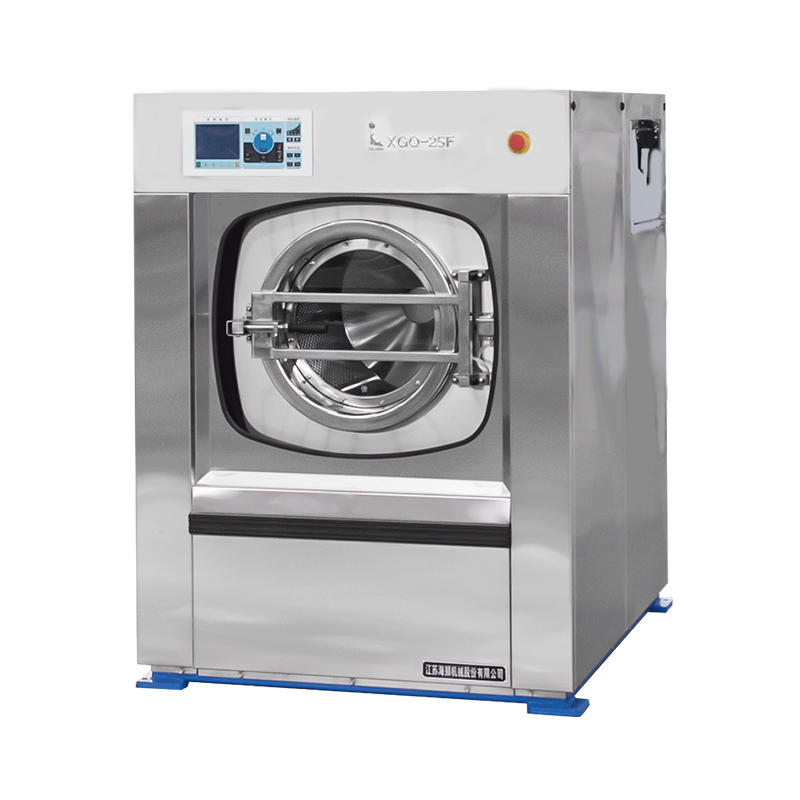

XGQ-25F

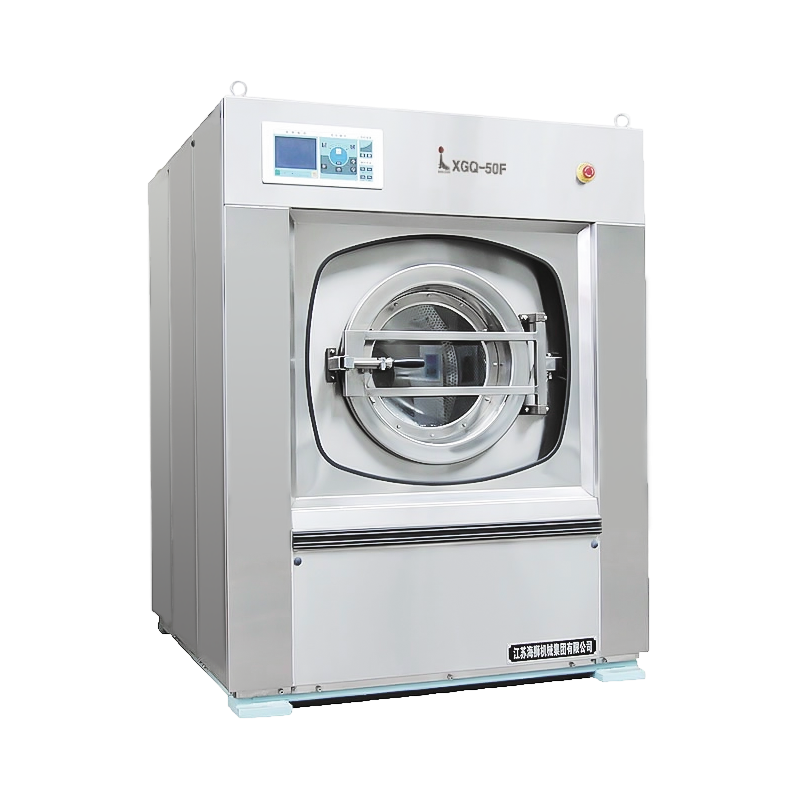

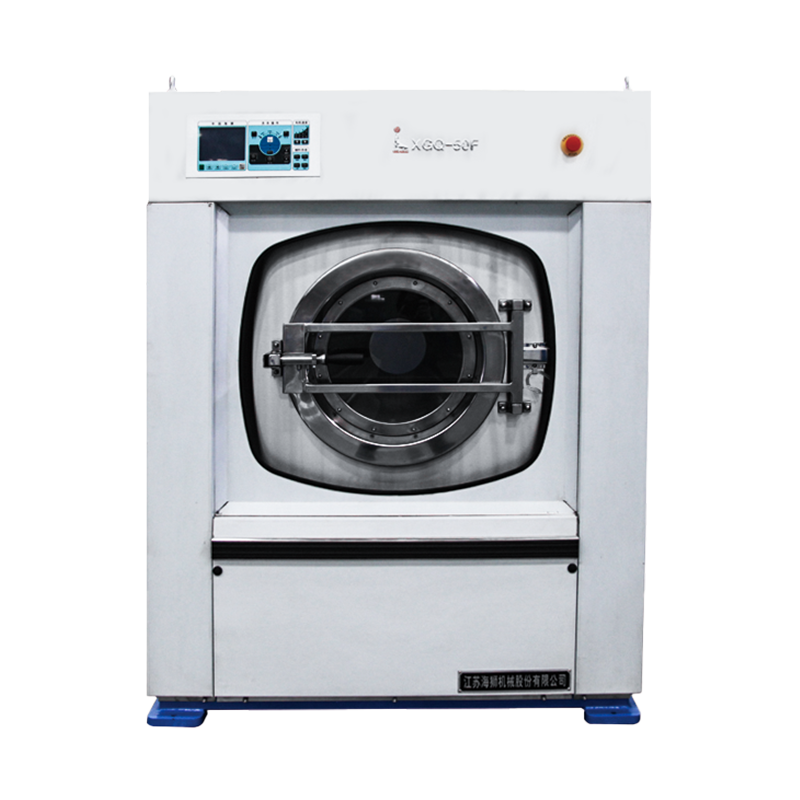

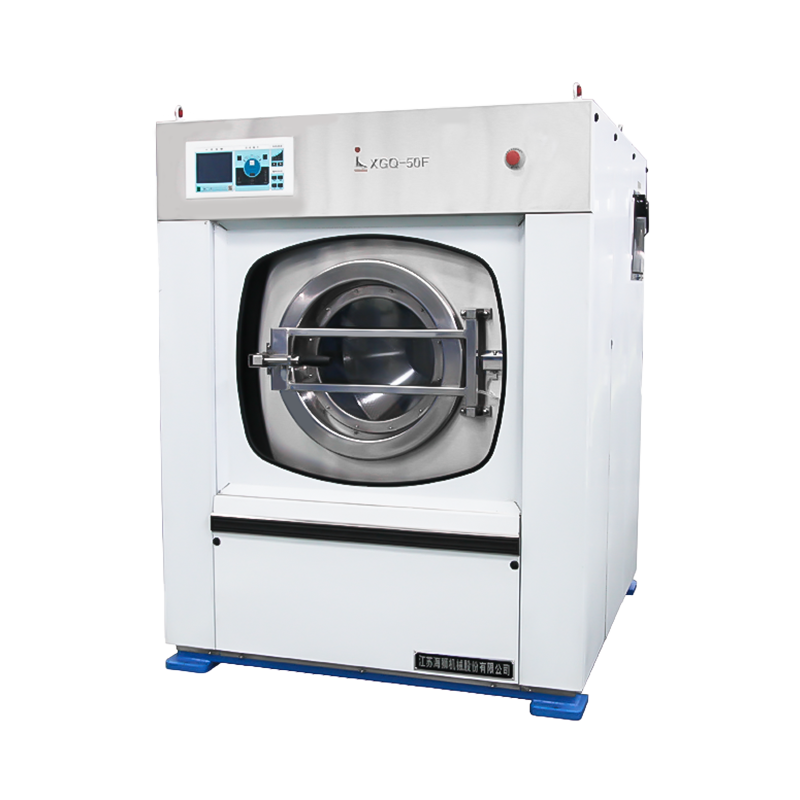

XGQ-50F

XGQ-80F

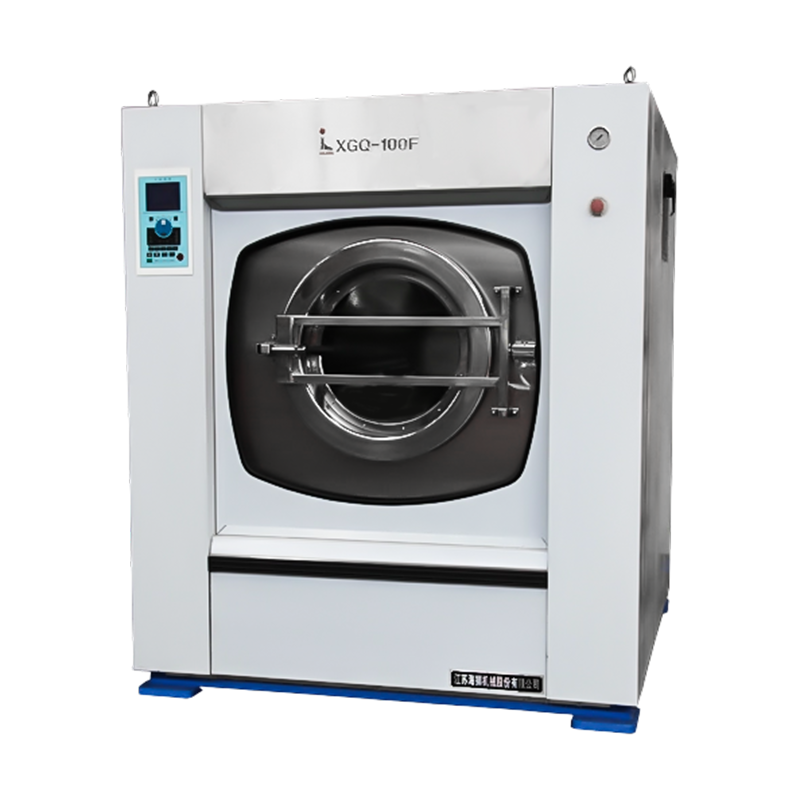

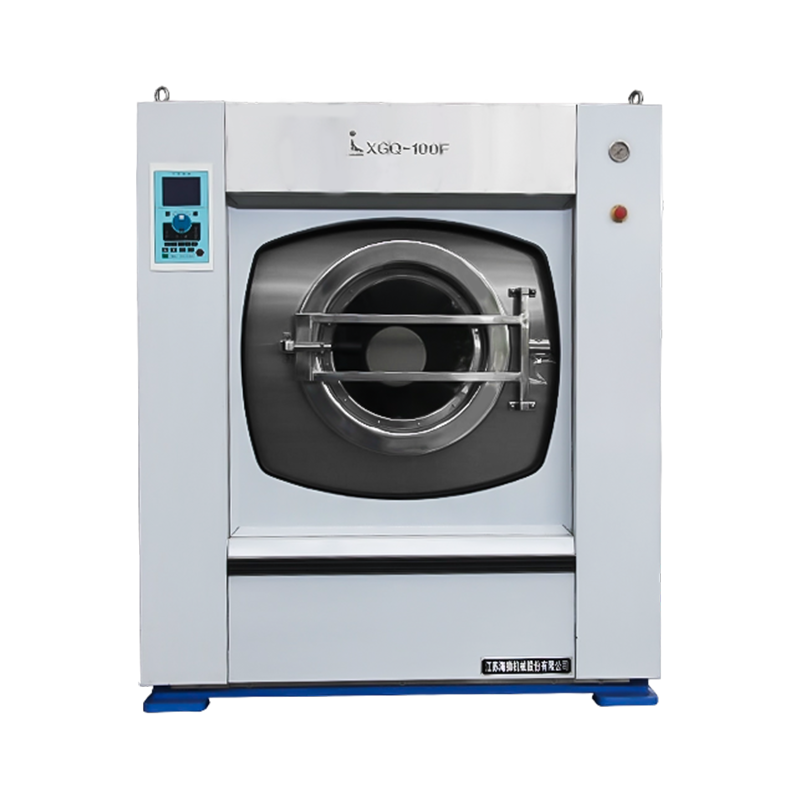

XGQ-IOOF

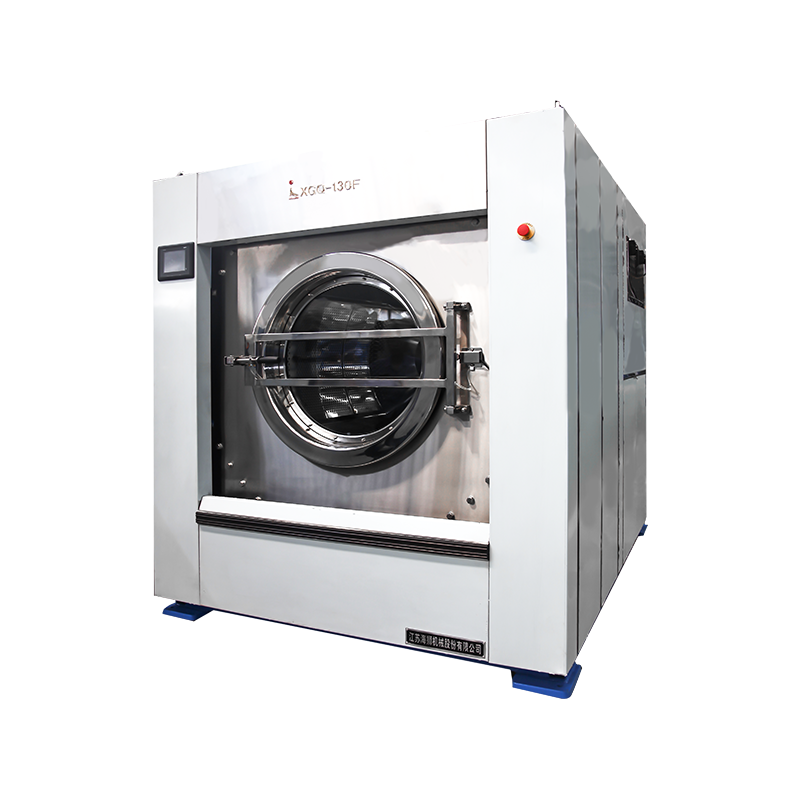

XGQ-I30F

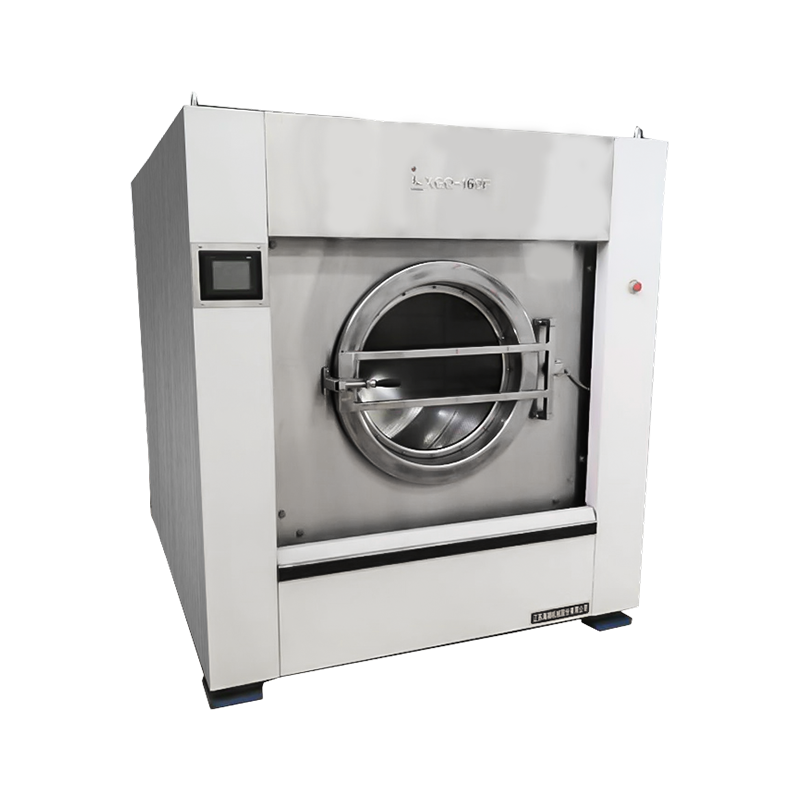

XGQ-160F

Facultatem rated (arida onus) kg

15

25

50

80

100

130

160

Interiorem tympanum longitudo mm

650×460

810×520

990×660

1150×800

1240×840

1350×932

1460×960

Exterior tympanum longitudo mm

710×536

864×618

1054×759

1218×922

1324×953

1434× 1044

1544×1104

Lavatio / aequante celeritate rpm

45/82

43/75

40/60

30/60

30/60

30/60

27/55

Medium / princeps extractionem rpm

440/920

430/830

375/750

360/700

325/680

310/640

300/630

Lava exolvuntur tempore min

45

45

45

45

45

45

45

Motor power(VFD) kW

1.5

3

4

6.5

7.5

15

22

Electric calefacientis potentia kW

12

22.5

45

45

45

----

----

vapor pipeφ DN

15

20

20

25

25

40

40

Frigida / calida aqua lingua φ DN

20

2×25

2×25

2×40

2×40

2×50

2×50

Aqua consummatio / exolvuntur kg

300

400

750

1200

1435

1900

2000

Vapor consummatio / kg cyclus

8

20

30

45

50

60

70

Potestas

kW. h*

consummatio/VFD)

0.4ISteam calefacere SIC3.5lelectrical calefactio E

0,8 (Supor calefactio SiSlelectrical calefactio El

II Steam Heating SI7lelectrical heating El

1.6 (Sl10.2lelectrical heatingE/l'

18ISteam HeatingSI10.5 (electrica heatingE)

2. Olelectrica calefactio B.

221electrical calefactio E

Aqua pressura MPa

0.2-0.4

0.2-0.4

0.2-0.4

0.2-0.4

0.2-0.4

0.2-0.4

0.2-0.4

Vapor pressura MPa

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

Cogo aeris pressura MPa

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

Dimensio (L/W/H) mm

950/800/1300

1355/1190/1585

1550/1353/1755

1945/1600/1930

1982/1718/2020

2150/1810/2000

2300/1940/2150

pondus kg

450

1022/1034

1464/1500

2570

2718/2750

3910

4500
